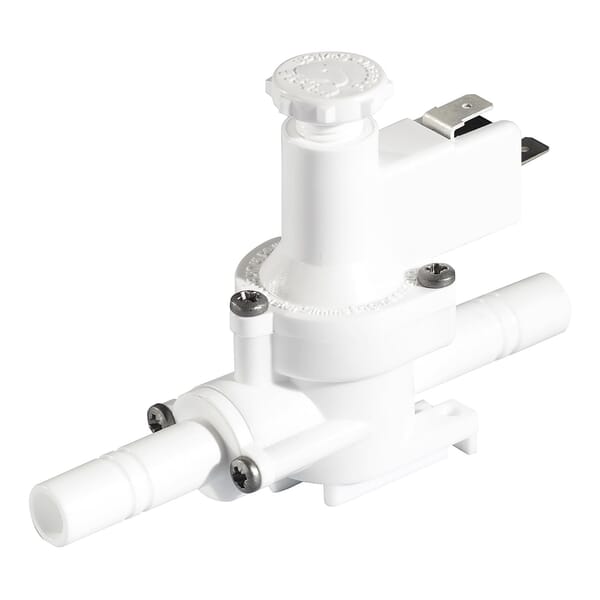

WHALE PRESSURE SWITCH 12/24V

Original Whale product
Inline pressure switch
Fitting an inline pressure switch allows regulation of the pressure in your leisure vehicle’s water system. It can be used with either submersible or inline self venting pumps.

- Adjustable cut in / cut out pressure setting
- Suitable for installation into 12 mm Whale Quick Connect or ½ flexible hose systems
- Controls the pump turning it on and off by sensing changes in water system pressure
- Reco mmended for use with Whale submersible and inline booster pumps
- Hose Connections: Suitable for Whale Quick Connect 12 mm and 10 mm (3/8") flexible Hose

Materials:
- Body: Acetal
- Seals and Valves: Nitrile®
- EPDM Spring: Phosphor Bronze
- Fasteners: Stainless Steel

- Current Rating: 10 amp: 12 V d.c. systems, 5 amp: 24 V d.c. systems
- Maximum Pressure: 2 bar (30 psi)
